Description

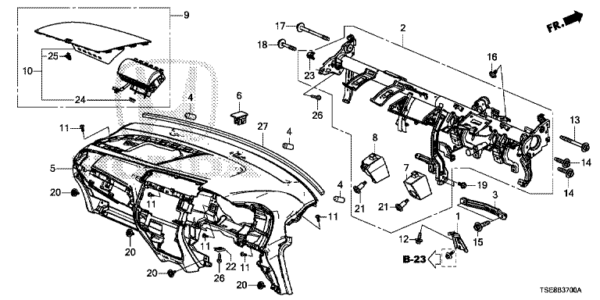

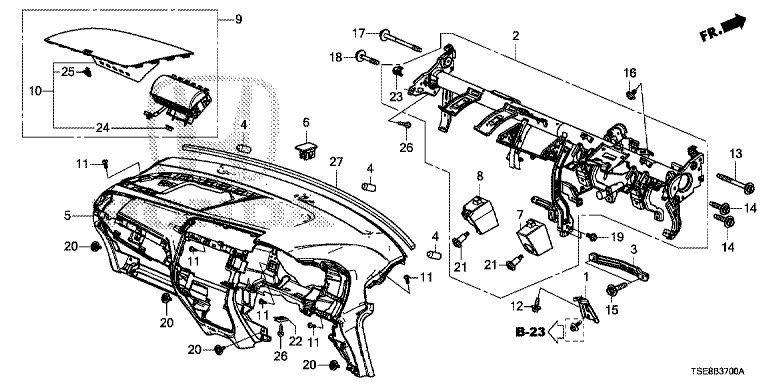

B-37 INSTRUMENT PANEL (RH)
| Ref No. | Parts No. | Parts Name | Unit Qty |
|---|---|---|---|
| 1 | 46597-TG2-000 | STAY, PEDAL | 001 |
| 2 | 61310-TSC-X20ZZ | BEAM COMP., STEERING HANGER | 001 |
| 4 | 66844-SA7-000 | CAP, INSTRUMENT PANEL STAY | 003 |
| 5 | 77103-TG2-X10ZA | PANEL, INSTRUMENT *NH167L* (NH167L GRAPHITE BLACK) | 001 |
| 6 | 77108-S2K-003ZE | LID, AIR CONDITIONER HOLE *NH167L * (NH167L GRAPHITE BLACK) | 001 |
| 9 | 77820-TSA-K80ZA | MODULE ASSY., PASSENGER *NH167L* (NH167L GRAPHITE BLACK) | 001 |
| 10 | 77821-TSA-K80ZA | LID COMP., PASSENGER *NH167L* (NH167L GRAPHITE BLACK) | 001 |
| 11 | 90101-S03-000 | SCREW, TAPPING, 4X16 | 006 |
| 12 | 90104-SFE-003 | BOLT, FLANGE, 8X23 | 001 |
| 13 | 90106-S3N-000 | BOLT-WASHER, 8X86 | 001 |
| 14 | 90106-S84-A00 | BOLT-WASHER, 8X40 | 002 |
| 16 | 90108-SF1-000 | BOLT-WASHER, 6X15 | 001 |
| 17 | 90111-SCC-003 | BOLT-WASHER, 8X99 | 001 |
| 18 | 90111-TG1-T00 | BOLT-WASHER, 8X48 | 001 |
| 19 | 90113-SAA-003 | BOLT, SPECIAL, 6X14 | 002 |
| 20 | 90140-SH3-003 | BOLT-WASHER, 5X18 | 004 |
| 22 | 90302-SA4-003 | NUT, SPRING, 4MM | 001 |
| 23 | 90310-SMA-003 | SPACER, ADJUST | 001 |
| 24 | 90321-SP0-A80 | NUT-WASHER, 6MM | 002 |
| 25 | 90666-SDA-A01 | CLIP, SNAP FITTING (PO) (NATURAL) | 001 |
| 26 | 93913-14420 | SCREW, TAPPING, 4X16 (PO) | 002 |
| 27 | 77466-S2G-000 | SEAL, FR. INSTRUMENT | 001 |
