Description

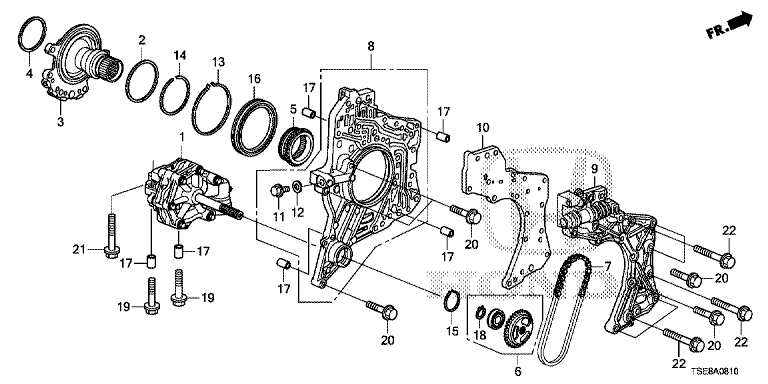

ATM-8-10 OIL PUMP/STATOR SHAFT
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 25100-5T0-013 | PUMP ASSY., OIL | 001 | |
| 2 | 25154-63C-003 | RING, SEAL, 56.7MM | 001 | |
| 3 | 25155-63C-000 | SHAFT ASSY., STATOR | 001 | |
| 4 | 25156-5T0-003 | RING, SEAL, 42.3MM | 001 | |
| 5 | 25161-63C-000 | SPROCKET, OIL PUMP DRIVE | 001 | |
| 6 | 25162-5T0-305 | SPROCKET SET, OIL PUMP DRIVEN | 001 | |
| 7 | 25165-PLY-003 | CHAIN, OIL PUMP DRIVE | 001 | |
| 8 | 25170-5T0-000 | FLANGE ASSY., STATOR SHAFT | 001 | |
| 9 | 27411-5T0-000 | BODY, MANUAL VALVE | 001 | |
| 10 | 27412-5T0-000 | PLATE, MANUAL SEPARATING | 001 | |
| 11 | 90024-612-000 | BOLT, SEALING, 8MM | 001 | |
| 12 | 90471-580-000 | PACKING, 8MM | 001 | |
| 13 | 90603-5T0-010 | CIRCLIP, EXTERNAL, 78MM | 001 | |
| 14 | 90603-RE5-000 | CIRCLIP, EXTERNAL, 56.5MM | 001 | |
| 15 | 90607-5T0-000 | CIRCLIP, EXTERNAL, 25MM | 001 | |
| 16 | 91005-63C-007 | BEARING, BALL, 56.5X78X9.6 | 001 | |
| 17 | 94301-08140 | DOWEL PIN, 8X14 | 006 | |
| 18 | 94510-13000 | CIRCLIP, EXTERNAL, 13MM | 001 | |
| 19 | 95701-06025-08 | BOLT, FLANGE, 6X25 | 002 | |
| 20 | 95701-06028-08 | BOLT, FLANGE, 6X28 | 010 | |
| 21 | 95701-06035-08 | BOLT, FLANGE, 6X35 | 001 | |
| 22 | 95701-06040-08 | BOLT, FLANGE, 6X40 | 007 |
