Description

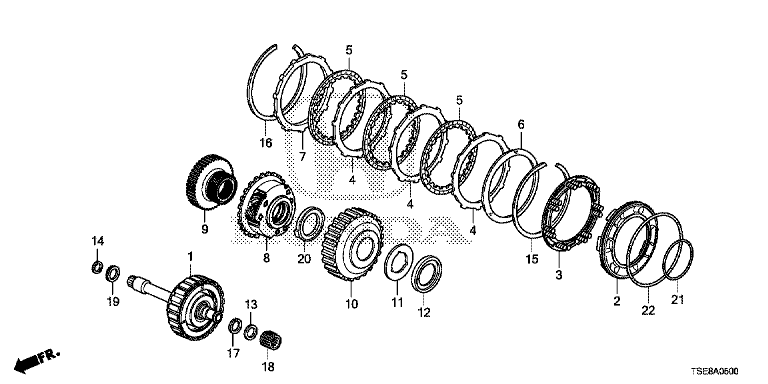

ATM-5 FORWARD CLUTCH
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 22500-5T0-003 | CLUTCH ASSY., FORWARD | 001 | |
| 2 | 22533-5T0-000 | PISTON, REVERSE BRAKE | 001 | |
| 3 | 22540-5T0-000 | SPRING COMP., REVERSE RETURN | 001 | |
| 4 | 22544-5T0-003 | PLATE, REVERSE BRAKE | 003 | |
| 5 | 22545-5T0-003 | DISK, REVERSE BRAKE | 003 | |
| 6 | 22546-5DJ-003 | SPRING, REVERSE BRAKE DISK (NIPPON HATSUJO) | 001 | |
| 7 | 22551-5T0-003 | PLATE, REVERSE BRAKE END (1) (3.6MM) | 001 | |
| 7 | 22552-5T0-003 | PLATE, REVERSE BRAKE END (2) (3.7MM) | 001 | |
| 7 | 22553-5T0-003 | PLATE, REVERSE BRAKE END (3) (3.8MM) | 001 | |
| 7 | 22554-5T0-003 | PLATE, REVERSE BRAKE END (4) (3.9MM) | 001 | |
| 7 | 22555-5T0-003 | PLATE, REVERSE BRAKE END (5) (4.0MM) | 001 | |
| 7 | 22556-5T0-003 | PLATE, REVERSE BRAKE END (6) (4.1MM) | 001 | |
| 7 | 22557-5T0-003 | PLATE, REVERSE BRAKE END (7) (4.2MM) | 001 | |
| 7 | 22558-5T0-003 | PLATE, REVERSE BRAKE END (8) (4.3MM) | 001 | |
| 7 | 22559-5T0-003 | PLATE, REVERSE BRAKE END (9) (4.4MM) | 001 | |
| 7 | 22560-5T0-003 | PLATE, REVERSE BRAKE END (10) (4.5MM) | 001 | |
| 7 | 22561-5T0-003 | PLATE, REVERSE BRAKE END (11) (4.6MM) | 001 | |
| 7 | 22562-5T0-003 | PLATE, REVERSE BRAKE END (12) (4.7MM) | 001 | |
| 7 | 22563-5T0-003 | PLATE, REVERSE BRAKE END (13) (4.8MM) | 001 | |
| 7 | 22564-5T0-003 | PLATE, REVERSE BRAKE END (14) (4.9MM) | 001 | |
| 7 | 22565-5T0-003 | PLATE, REVERSE BRAKE END (15) (5.0MM) | 001 | |
| 8 | 23500-5T0-000 | GEAR COMP., PLANETARY | 001 | |
| 9 | 23511-5T0-000 | GEAR, SUN | 001 | |
| 10 | 23520-5T0-000 | GEAR COMP., RING | 001 | |
| 11 | 90405-5T0-000 | WASHER, THRUST, 33.5X53X1 | 001 | |
| 12 | 90406-5T0-000 | COLLAR, 40X54X6 | 001 | |
| 13 | 90451-5T0-000 | SHIM A, 33X40 (1.31) | 001 | |
| 13 | 90452-5T0-000 | SHIM B, 33X40 (1.34) | 001 | |
| 13 | 90453-5T0-000 | SHIM C, 33X40 (1.37) | 001 | |
| 13 | 90454-5T0-000 | SHIM D, 33X40 (1.40) | 001 | |
| 13 | 90455-5T0-000 | SHIM E, 33X40 (1.43) | 001 | |
| 13 | 90456-5T0-000 | SHIM F, 33X40 (1.46) | 001 | |
| 13 | 90457-5T0-000 | SHIM G, 33X40 (1.49) | 001 | |
| 13 | 90458-5T0-000 | SHIM H, 33X40 (1.52) | 001 | |
| 13 | 90459-5T0-000 | SHIM I, 33X40 (1.55) | 001 | |
| 13 | 90460-5T0-000 | SHIM J, 33X40 (1.58) | 001 | |
| 13 | 90461-5T0-000 | SHIM K, 33X40 (1.61) | 001 | |
| 13 | 90462-5T0-000 | SHIM L, 33X40 (1.64) | 001 | |
| 13 | 90463-5T0-000 | SHIM M, 33X40 (1.67) | 001 | |
| 13 | 90464-5T0-000 | SHIM N, 33X40 (1.70) | 001 | |
| 13 | 90465-5T0-000 | SHIM O, 33X40 (1.73) | 001 | |
| 13 | 90466-5T0-000 | SHIM P, 33X40 (1.76) | 001 | |
| 13 | 90467-5T0-000 | SHIM Q, 33X40 (1.79) | 001 | |
| 13 | 90468-5T0-000 | SHIM R, 33X40 (1.82) | 001 | |
| 13 | 90469-5T0-000 | SHIM S, 33X40 (1.85) | 001 | |
| 13 | 90470-5T0-000 | SHIM 0A, 33X40 (1.16) | 001 | |
| 13 | 90471-5T0-000 | SHIM 0B, 33X40 (1.19) | 001 | |
| 13 | 90472-5T0-000 | SHIM 0C, 33X40 (1.22) | 001 | |
| 13 | 90473-5T0-000 | SHIM 0D, 33X40 (1.25) | 001 | |
| 13 | 90474-5T0-000 | SHIM 0E, 33X40 (1.28) | 001 | |
| 14 | 90491-5T0-000 | SHIM A, 26X38.8 (1.4) | 001 | |
| 14 | 90492-5T0-000 | SHIM B, 26X38.8 (1.65) | 001 | |
| 14 | 90493-5T0-000 | SHIM C, 26X38.8 (1.9) | 001 | |
| 14 | 90494-5T0-000 | SHIM D, 26X38.8 (2.15) | 001 | |
| 14 | 90495-5T0-000 | SHIM E, 26X38.8 (2.4) | 001 | |
| 15 | 90602-5T0-000 | CIRCLIP, INTERNAL, 138MM | 001 | |
| 16 | 90605-5T0-000 | CIRCLIP B, INTERNAL, 138MM | 001 | |
| 17 | 90609-5T0-000 | CIRCLIP, EXTERNAL, 33MM | 001 | |
| 18 | 91106-5T0-007 | BEARING, NEEDLE, 16X20X16.8 | 001 | |
| 19 | 91131-5T0-007 | BEARING, THRUST NEEDLE, 26X40.8X3.2 | 001 | |
| 20 | 91132-5T0-007 | BEARING, THRUST NEEDLE, 37X53.1X3 | 001 | |
| 21 | 91304-PWR-003 | O-RING, 86.6X2.3 (NOK) | 001 | |
| 22 | 91312-5T0-004 | O-RING, 125.5X2.5 (ARAI) | 001 |
