Description

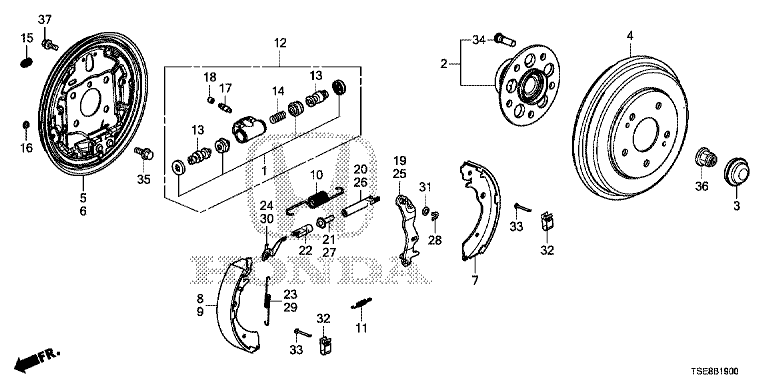

B-19 REAR BRAKE
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 01433-T5R-A00 | CYLINDER SET, RR. WHEEL | 002 | |
| 2 | 42200-TDK-J51 | BEARING ASSY., RR. HUB UNIT (NTN) | 002 | |
| 3 | 42326-SLJ-000 | CAP, HUB UNIT | 002 | |
| 4 | 42610-TSA-K00 | DRUM, RR. BRAKE | 002 | |
| 5 | 43110-TE8-K01 | PLATE COMP., R. RR. BRAKE BACK | 001 | |
| 6 | 43120-TE8-K01 | PLATE COMP., L. RR. BRAKE BACK | 001 | |
| 7 | 43153-SM4-A03 | SHOE COMP. A, RR. BRAKE | 002 | |
| 8 | 43154-SM4-A03 | SHOE COMP. B, RR. BRAKE (LEFT HAND SIDE) | 001 | |
| 9 | 43155-SM4-A03 | SHOE COMP. C, RR. BRAKE (RIGHT HAND SIDE) | 001 | |
| 10 | 43171-S84-A01 | SPRING A, BRAKE | 002 | |
| 11 | 43172-SM4-A02 | SPRING B, BRAKE | 002 | |
| 12 | 43300-T5R-A01 | CYLINDER ASSY., RR. WHEEL | 002 | |
| 13 | 43321-S04-003 | PISTON, WHEEL CYLINDER | 004 | |
| 14 | 43323-663-003 | SPRING, RR. WHEEL CYLINDER | 002 | |
| 15 | 43345-S04-003 | PLUG, ADJUSTER | 002 | |
| 16 | 43345-S5A-003 | PLUG, ADJUSTER | 002 | |
| 17 | 43352-568-003 | SCREW, BLEEDER (NISSIN) | 002 | |
| 18 | 43353-SD5-003 | CAP, BLEEDER SCREW | 002 | |
| 19 | 43360-SCC-003 | LEVER COMP., R. PARKING BRAKE | 001 | |
| 20 | 43362-S84-A01 | ROD A, R. CONNECTING | 001 | |
| 21 | 43363-S84-A01 | BOLT, R. ADJUSTER | 001 | |
| 22 | 43364-S84-A01 | ROD B, CONNECTING | 002 | |
| 23 | 43367-SM4-A01 | SPRING, R. ADJUSTER | 001 | |
| 24 | 43368-S84-A01 | LEVER, R. ADJUSTER | 001 | |
| 25 | 43370-SCC-003 | LEVER COMP., L. PARKING BRAKE | 001 | |
| 26 | 43372-S84-A01 | ROD A, L. CONNECTING | 001 | |
| 27 | 43373-S84-A01 | BOLT, L. ADJUSTER | 001 | |
| 28 | 43375-SA0-003 | U-CLIP | 002 | |
| 29 | 43377-SM4-A01 | SPRING, L. ADJUSTER | 001 | |
| 30 | 43378-SM4-A01 | LEVER, L. ADJUSTER | 001 | |
| 31 | 43379-SA5-003 | WASHER, WAVE | 002 | |
| 32 | 45172-S04-003 | SPRING, SHOE CLAMP | 004 | |
| 33 | 45175-SA0-013 | PIN, TENSIONER | 004 | |
| 34 | 90113-S5H-005 | BOLT, WHEEL (THAI MEIRA) | 010 | |
| 34 | 90113-SA0-006 | BOLT, WHEEL (SAGA) | 010 | |
| 34 | 90113-SA0-025 | BOLT, WHEEL (NAGOYA RASHI) | 010 | |
| 34 | 90113-SM1-005 | BOLT, WHEEL (ROCKNEL FASTENER) | 010 | |
| 35 | 90162-TF0-J00 | BOLT, FLANGE, 12X18 | 008 | |
| 36 | 90305-S30-003 | NUT, SPINDLE | 002 | |
| 37 | 95701-06012-08 | BOLT, FLANGE, 6X12 | 004 |
