Description

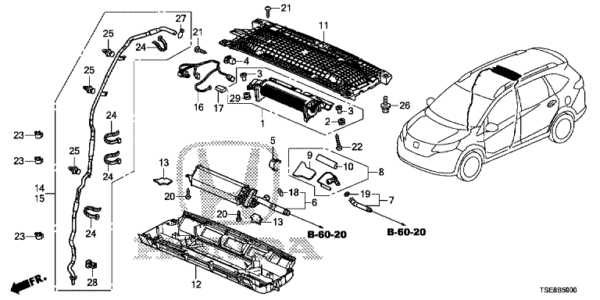

B-59 AIR CONDITIONER (REAR COOLING UNIT)
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 79310-TE7-K02 | MOTOR ASSY., FAN | 001 | |
| 2 | 79325-SZY-T21 | RUBBER, MOUNTING | 003 | |
| 3 | 79326-SZY-T21 | BUSH | 004 | |
| 4 | 79330-SZY-T01 | RESISTOR, BLOWER | 001 | |
| 5 | 80206-SX0-961 | HOLDER | 001 | |
| 6 | 80211-TE7-K01 | EVAPORATOR COMP. | 001 | |
| 7 | 80212-TE7-K01 | PIPE ASSY. | 001 | |
| 8 | 80213-SZY-T01 | VALVE ASSY., EXPANSION | 001 | |
| 9 | 80216-SZY-T01 | PACKING | 001 | |
| 10 | 80217-SZY-T01 | PACKING | 001 | |
| 11 | 80251-TE7-K01 | CASE SET, RR. COOLER UPPER | 001 | |
| 12 | 80252-SZY-T02 | CASE SET, RR. COOLER LOWER | 001 | |
| 13 | 80256-SZY-T01 | PACKING, EVAPORATOR (A) | 002 | |
| 14 | 80271-TE7-K00 | TUBE COMP., L. RR. DRAIN | 001 | |
| 15 | 80271-TE7-K50 | TUBE COMP., R. RR. DRAIN | 001 | |
| 16 | 80460-SZY-T01 | SUB CORD, RR. COOLER | 001 | |
| 17 | 80465-SZY-T01 | FUSE ASSY. | 001 | |
| 18 | 80872-SN7-003 | O-RING (1/2″) | 001 | |
| 19 | 80873-SN7-003 | O-RING, 8MM | 001 | |
| 20 | 90127-SZY-003 | SCREW, TAPPING, 4X16 | 002 | |
| 21 | 90128-SZY-T00 | SCREW, TAPPING, 4X16 | 014 | |
| 22 | 90136-SX0-003 | SCREW, TAPPING, 5X31 | 004 | |
| 23 | 91504-TR0-J01 | CLIP, SUNROOF DRAIN TUBE | 006 | |
| 24 | 91556-PDF-E01 | BAND, CLAMP (NATURAL) (143.2MM) | 008 | |
| 25 | 91560-S84-A01 | CLIP, DOOR LINING (NATURAL) | 006 | |
| 26 | 93405-06016-08 | BOLT-WASHER, 6X16 | 005 | |
| 27 | 70057-SNA-A00 | CLIP, SUNROOF DRAIN TUBE | 002 | |
| 28 | 91545-SNA-003 | CLIP, HARNESS BAND (DARK BLUE) (164.5MM) (WITH SEAL) | 002 | |
| 29 | 79325-TE7-K01 | RUBBER, MOUNTING | 001 |
