Description

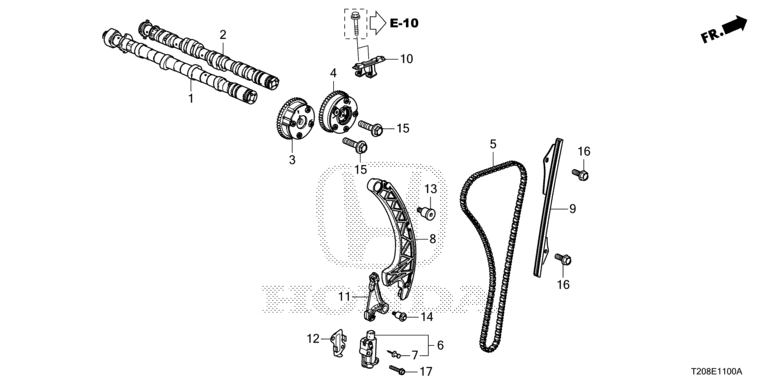

E-11 CAMSHAFT/CAM CHAIN
| Ref No. | Parts No. | Parts Name | Parts Name(S/M) | Unit Qty |
|---|---|---|---|---|
| 1 | 14110-64D-N00 | CAMSHAFT COMP., IN. | Intake Camshaft | 001 |
| 2 | 14120-6A4-Z00 | CAMSHAFT COMP., EX. | Exhaust Camshaft | 001 |
| 3 | 14310-6A0-A01 | ACTUATOR ASSY., VTC IN. (46T) | VTC Actuator A | 001 |
| 4 | 14320-6A0-A01 | ACTUATOR ASSY., VTC EX. (46T) | VTC Actuator B | 001 |
| 5 | 14401-6A0-A01 | CHAIN (166L) | Cam Chain | 001 |
| 6 | 14510-6A0-A01 | TENSIONER COMP., CAM CHAIN | Cam Chain Auto-Tensioner | 001 |
| 7 | 14511-PNA-003 | STOPPER (TOOL) | (1) | |
| 8 | 14520-6A0-A01 | ARM COMP., CAM CHAIN TENSIONER | Cam Chain Tensioner Arm | 001 |
| 9 | 14530-6A0-A01 | GUIDE COMP., CAM CHAIN | Cam Chain Guide | 001 |
| 10 | 14540-59B-003 | GUIDE COMP. B, CAM CHAIN | Cam Chain Guide B | 001 |
| 11 | 14550-59B-000 | ARM COMP., CAM CHAIN TENSIONER | Cam Chain Tensioner Sub Arm | 001 |
| 12 | 14560-5A2-A00 | FILTER, CHAIN TENSIONER | Cam Chain Auto-Tensioner Filter | 001 |
| 13 | 90003-PNA-000 | BOLT, TENSIONER PIVOT | 001 | |
| 14 | 90004-RNA-A00 | BOLT, CHAIN GUIDE | 001 | |
| 15 | 90032-PNA-000 | BOLT, FLANGE, 12X47 | 002 | |
| 16 | 95701-06016-08 | BOLT, FLANGE, 6X16 | Oil Check Bolt | 002 |
| 17 | 95701-06032-08 | BOLT, FLANGE, 6X32 | 002 |
